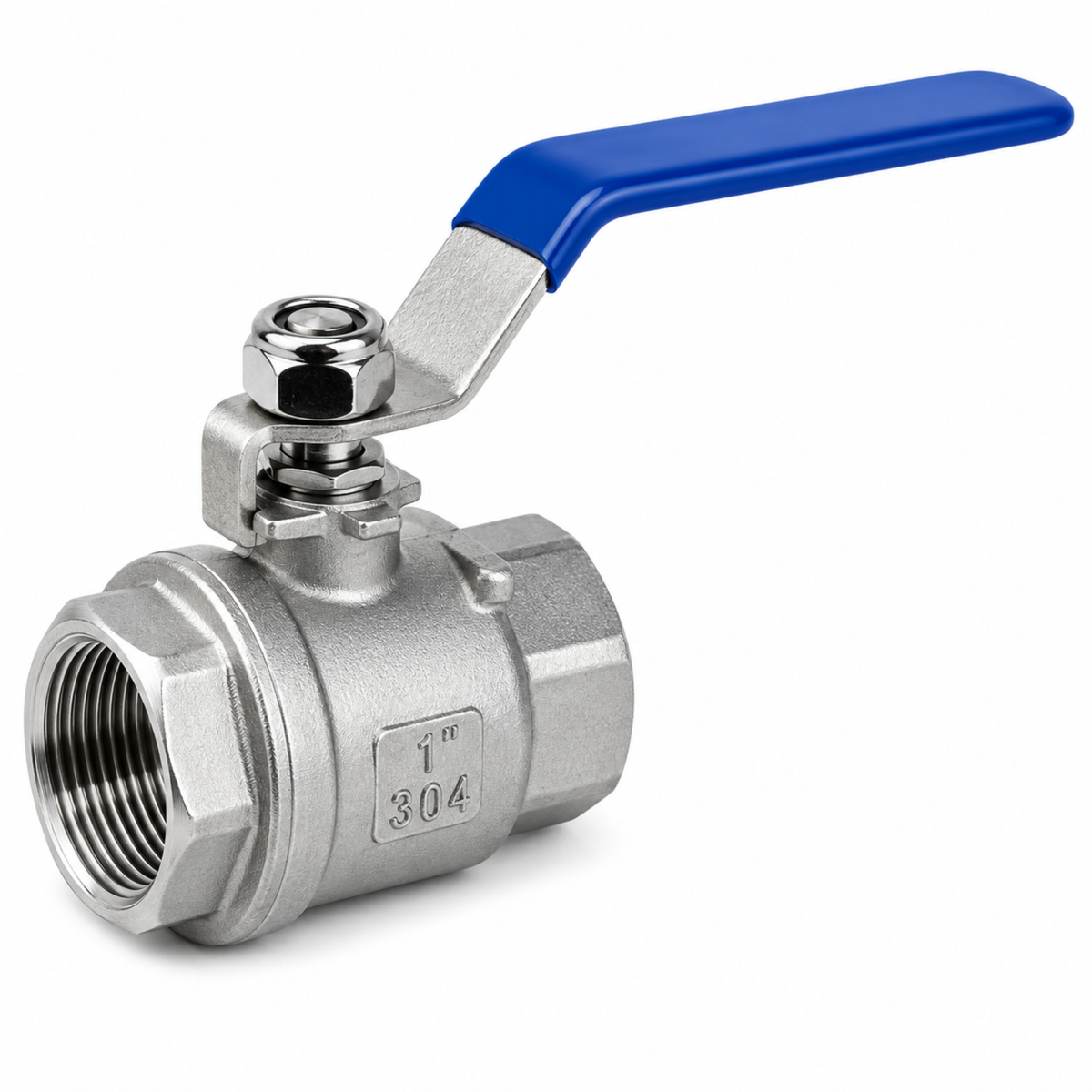

2-Piece Ball Valve F/F Threaded

Description

The 2-Piece Ball Valve (Female/Female) is the industry-standard solution for quarter-turn flow isolation. Featuring a two-piece body construction, it offers a robust build and excellent sealing performance. Its Full Bore design ensures that flow is unrestricted when the valve is open, minimizing pressure drop and making it the ideal choice for demanding water, industrial, and utility applications.

Technical Specifications

• Design Type: 2-Piece body, Full Bore (standard)

• Operation: Quarter-turn handle (Lever style)

• Connection: Female x Female Threaded (BSP/NPT)

• Body Material: High-grade Forged Brass (Chrome-plated) or Stainless Steel (SS304/SS316)

• Sealing: PTFE (Teflon) seats and seals for chemical and high-temperature resistance

• Pressure Rating: PN25 / PN40 (High-pressure capable)

• Temperature Range: -20°C to +150°C (depending on material/gasket)

Key Applications

• Main Line Isolation: Used extensively in mechanical rooms to isolate pumps, tanks, and secondary distribution loops.

• Water & HVAC: The preferred valve for domestic and industrial chilled water systems in Qatar’s commercial buildings.

• Industrial Process: Ideal for air, water, and compatible chemical lines in Mesaieed industrial plants.

• System Maintenance: A reliable, long-life component that handles frequent operation without seat degradation.
