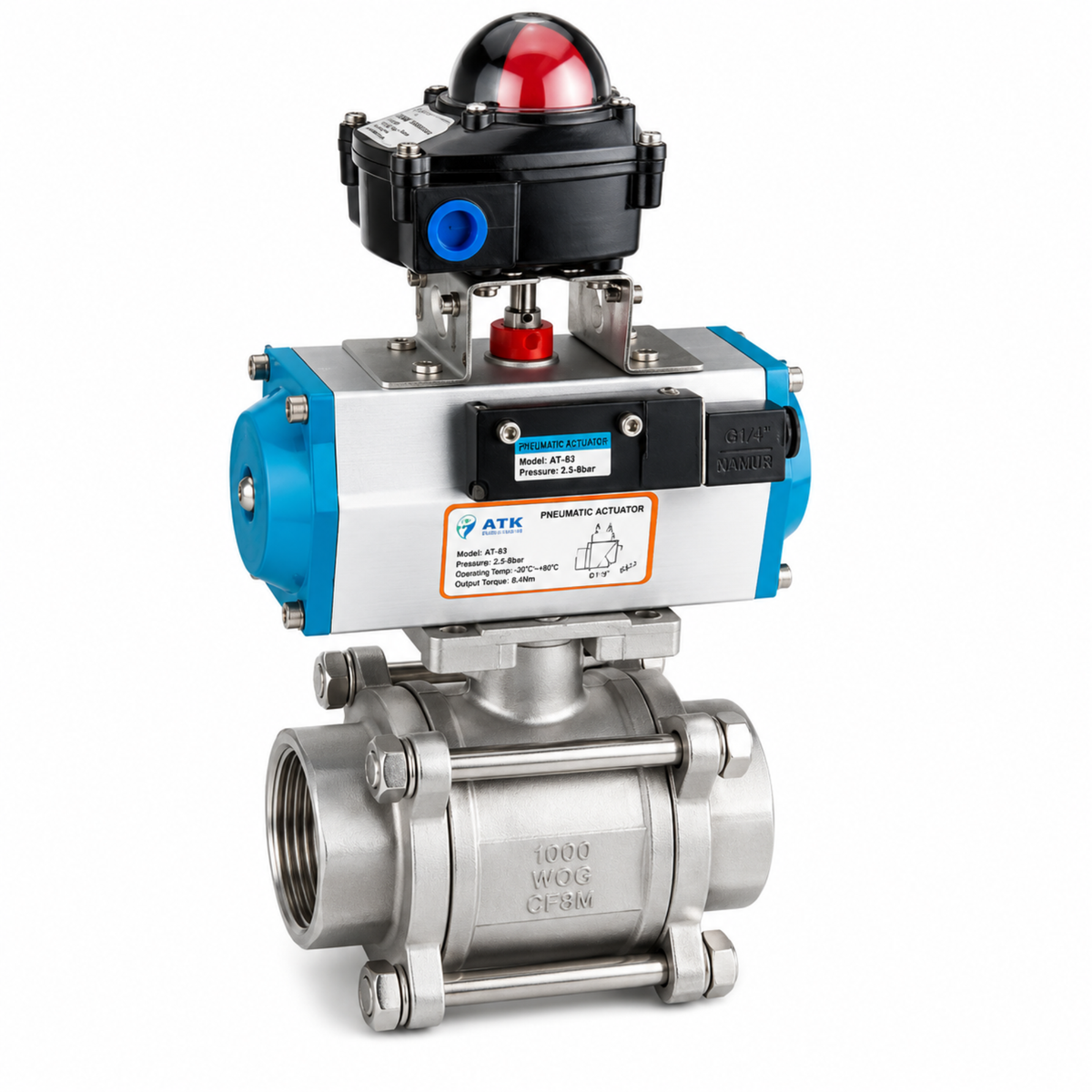

3-Piece Ball Valve with Actuator

Description

The 3-Piece Ball Valve with Actuator combines the high-performance, serviceable design of a 3-piece valve with the efficiency of automated control. By integrating a high-torque pneumatic or electric actuator, these valves allow for precision remote operation, essential for modern industrial plants where manual valve access is hazardous or inefficient.

Technical Specifications

• Valve Type: 3-Piece Full Bore Ball Valve (SS316 / CF8M)

• Actuator Type: Pneumatic (Spring Return or Double Acting) or Electric (24VDC/220VAC)

• Connection: Threaded (BSP/NPT), Socket Weld (SW), or Butt Weld (BW)

• Mounting Interface: ISO 5211 Standard (Ensuring perfect alignment)

• Sealing: PTFE/RTFE/Graphite seats for high-pressure/temp endurance

• Controls: Optional Limit Switches, Solenoid Valves, and Positioners

• Pressure Rating: Up to 1000 WOG / PN63

Key Applications

• Remote Shutdown: Critical for safety systems where valves must close instantly during an emergency.

• Automated Manifolds: Standardizes flow switching in multi-branch systems without human intervention.

• Hazardous Environments: Allows control from a central control room, keeping personnel away from volatile process areas.

• Process Efficiency: Ideal for continuous cycling operations in chemical or water treatment facilities in Mesaieed and Ras Laffan.
