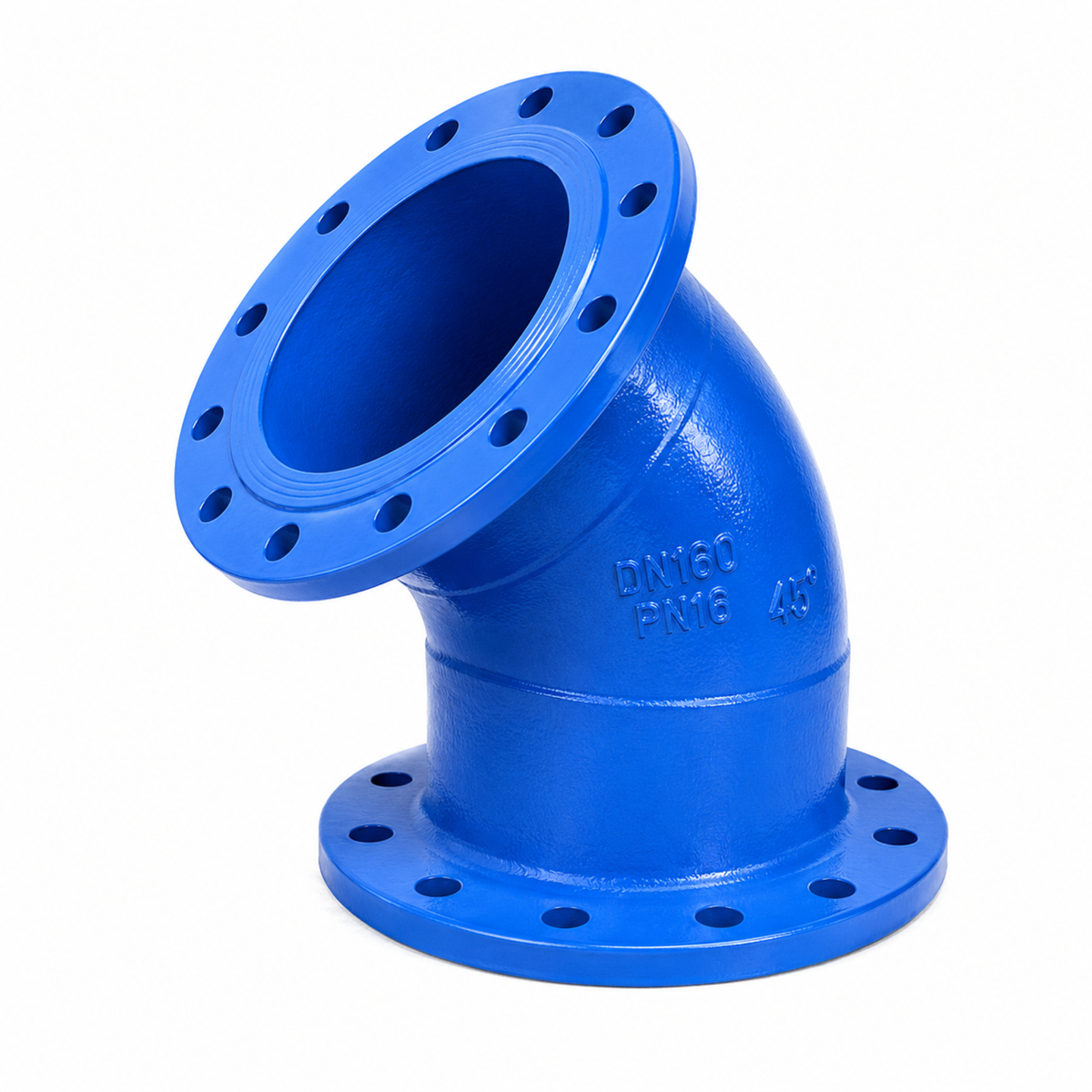

45° Flanged Elbow

Description

The 45° Flanged Elbow is a heavy-duty fitting designed for redirecting pipeline flow by 45 degrees in high-pressure environments. Unlike push-fit (socket) fittings, the flanged connection provides a rigid, bolt-secured joint that is ideal for above-ground installations, pumping stations, and critical process piping where the system must be serviceable and capable of withstanding significant mechanical stress.

Technical Specifications

• Design Type: 45° Flanged Elbow

• Pressure Rating: PN10 / PN16

• Body Material: High-strength Ductile Iron (GGG40/50)

• Connection: Flanges drilled to BS EN 1092-2 / ISO standards

• Coating: Industrial-grade Fusion Bonded Epoxy (FBE) interior/exterior for long-term corrosion resistance

• Machining: Precision-faced flanges for optimal gasket contact and bolt alignment

• Standards: Fully compatible with standard valves and flanged pipe spools

Key Applications

• Pumping Station Layouts: Essential for redirecting flow into or out of pumps while maintaining manifold rigidity.

• Industrial Manifolds: Used in plant piping to navigate obstacles while ensuring structural integrity.

• Process Piping: Ideal for chemical, water, or cooling loops in Mesaieed and Ras Laffan industrial facilities.

• Critical Infrastructure: Provides the necessary strength for high-pressure water transmission lines where joints must be permanent and bolt-secured.
