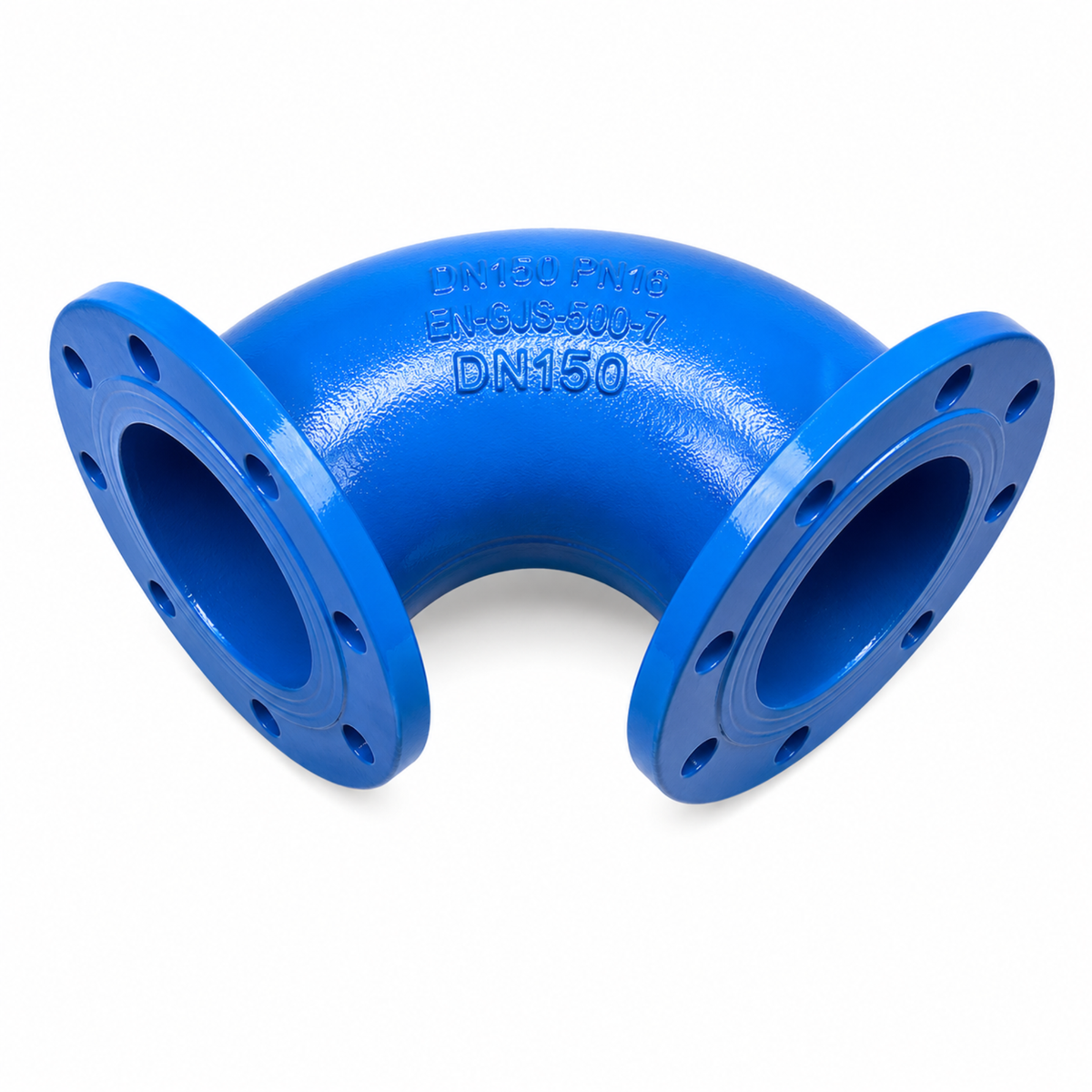

90° Flanged Elbow

Description

The 90° Flanged Elbow is a heavy-duty fitting designed for redirecting pipeline flow by a full 90 degrees in high-pressure environments. Engineered for maximum structural integrity, the flanged connection provides a rigid, bolt-secured joint that is perfect for above-ground piping, pumping stations, and critical process loops where the system must be serviceable and capable of withstanding heavy vibration or mechanical stress.

Technical Specifications

• Design Type: 90° Flanged Elbow

• Pressure Rating: PN10 / PN16

• Body Material: High-strength Ductile Iron (GGG40/50)

• Connection: Flanges drilled to BS EN 1092-2 / ISO standards

• Coating: Industrial-grade Fusion Bonded Epoxy (FBE) interior/exterior for long-term corrosion resistance

• Machining: Precision-faced flanges to ensure perfect gasket seating and leak-free performance

• Standards: Fully compatible with standard valves and flanged pipe spools

Key Applications

• Pumping Station Layouts: Essential for vertical-to-horizontal flow transitions in pump discharge setups.

• Valve Pits & Manifolds: Used in plant piping to navigate tight corners while maintaining permanent, bolt-secured connections.

• Industrial Infrastructure: Ideal for chemical, water, or cooling loops in Mesaieed and Ras Laffan facilities.

• Critical Infrastructure: Provides the necessary strength for high-pressure water transmission lines where joints must be permanent and maintenance-friendly.
