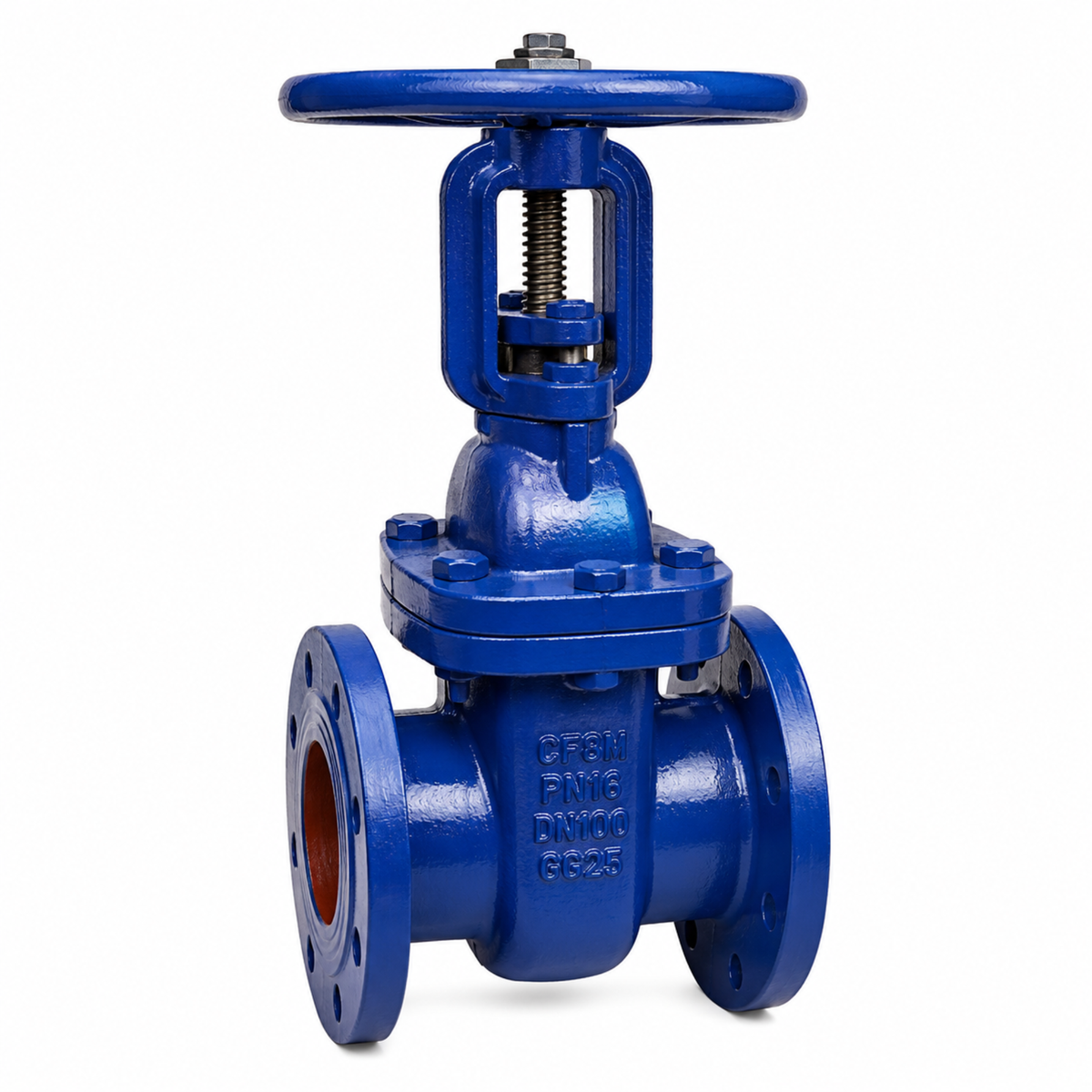

DIN3352 F4 Metal Seat Gate Valve (R.S.) PN10/PN16

Description

The DIN3352 F4 Gate Valve is a high-performance, non-rising stem (NRS) valve engineered for robust flow control in demanding industrial and municipal water systems. Featuring a compact face-to-face dimension (DIN3202 F4/EN558-1 Series 14), this valve is designed for space-efficient installation without compromising structural integrity or sealing performance.

Key Features & Benefits

• Precision Engineering: Manufactured in strict accordance with DIN 3352 standards, ensuring global compatibility and reliable operation.

• Superior Durability: Constructed with a high-strength Ductile Iron (GGG40/GGG50) body, providing excellent resistance to pressure and impact.

• Optimal Sealing: Equipped with an EPDM/NBR encapsulated wedge that ensures a drop-tight, leak-proof seal. The smooth, obstruction-free flow path minimizes pressure loss and prevents the buildup of impurities.

• Corrosion Resistance: Internally and externally coated with high-quality Fusion Bonded Epoxy (FBE), making it ideal for sewage, treated water, and industrial chemical applications.

• Reliable Operation: The non-rising stem design provides a stable, low-torque operation, making it the preferred choice for underground installations and systems where space is limited.

Technical Specifications

• Standard: DIN 3352 F4

• Face-to-Face: DIN 3202 F4 / EN558-1 Series 14

• Pressure Rating: PN10 / PN16

• Size Range: DN50 – DN600 (2" – 24")

• Body Material: Ductile Iron (GGG40/50)

• Stem Material: Stainless Steel (2Cr13/SS304/SS316)

• Seat/Wedge: Ductile Iron + EPDM/NBR Coating

• Operating Temperature: -10°C to +80°C (depending on seal material)

• Flange Standard: DIN 2501 / EN 1092-2

Applications

This gate valve is widely utilized across several critical infrastructure sectors:

• Waterworks: Urban water supply and drinking water pipelines.

• Wastewater: Sewage treatment and industrial wastewater plants.

• Industrial: Cooling water circuits, power plants, and chemical processing.

• Infrastructure: Fire-fighting systems and agricultural irrigation networks.

Compliance & Testing

Each valve undergoes rigorous pressure testing in accordance with DIN 3230 or EN 12266 standards to guarantee shell and seat tightness under full working pressure, ensuring long-term operational safety and efficiency in your project.
