Flanged Cross

Description

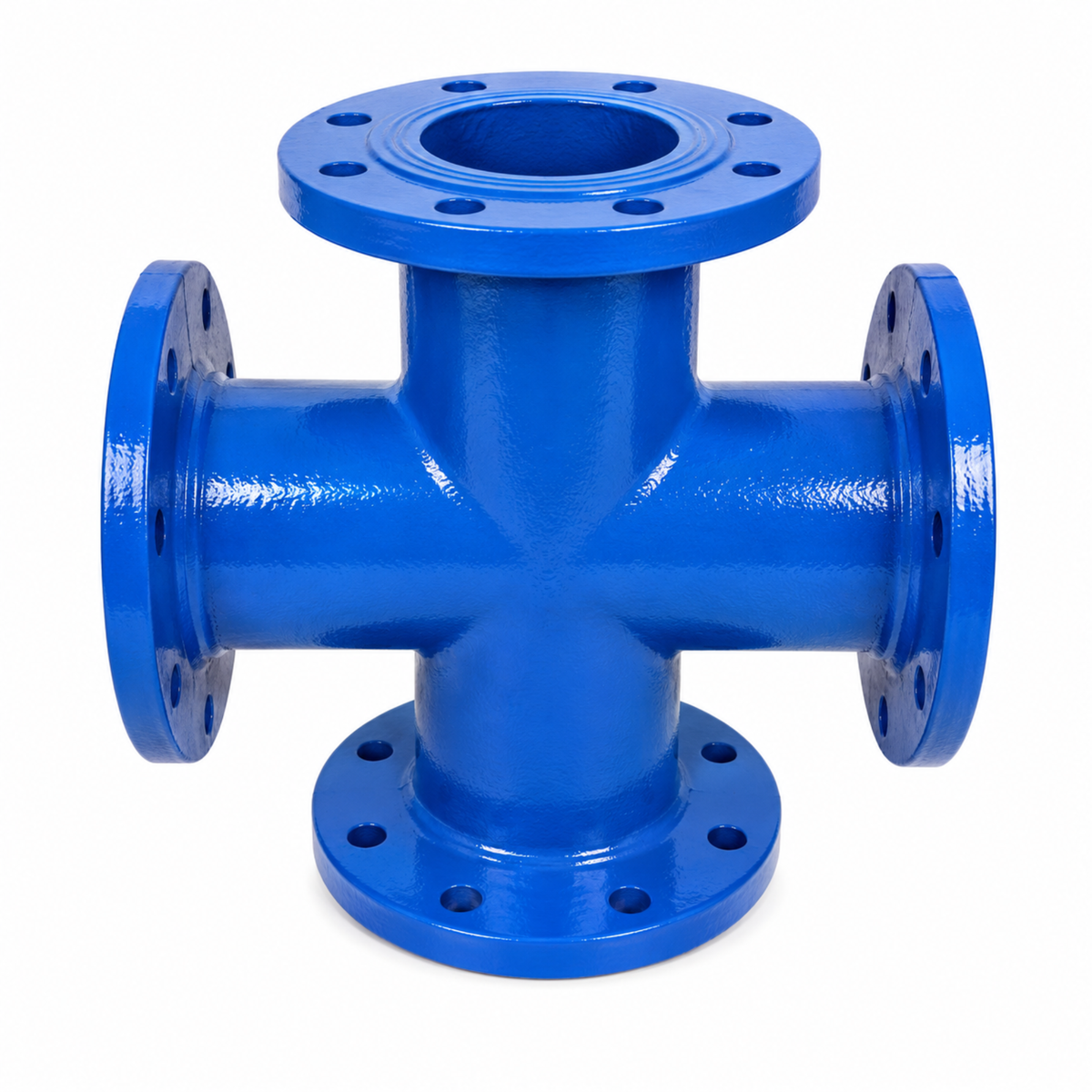

The Flanged Cross is a heavy-duty pipeline fitting engineered for critical applications where high structural integrity is required. By providing four flanged outlets, it allows for the construction of complex pipeline manifolds and pumping station junctions. The flanged connection ensures a rigid, bolt-secured joint that can withstand extreme pressures, vibrations, and mechanical stress, making it the preferred choice for industrial plants and large-scale water treatment facilities.

Technical Specifications

• Design Type: Flanged Cross (4-Way Junction)

• Pressure Rating: PN10 / PN16

• Body Material: High-strength Ductile Iron (GGG40/50)

• Connection: Flanges drilled to BS EN 1092-2 / ISO standards

• Coating: Industrial-grade Fusion Bonded Epoxy (FBE) interior/exterior for long-term corrosion protection

• Surface Finish: Precision machined flange faces for optimal gasket sealing

• Standards: Compatible with all standard flanged valves and pipe spools

Key Applications

• Pumping Station Manifolds: The core component for joining pump discharge lines and headers.

• High-Pressure Networks: Essential for industrial water transmission where bolt-tightened rigidity is mandatory.

• Maintenance & Retrofitting: Allows for permanent, serviceable 4-way junctions in plant infrastructure across Mesaieed and Ras Laffan.

• Industrial Cooling Loops: Provides a secure junction point for complex closed-loop piping systems.
