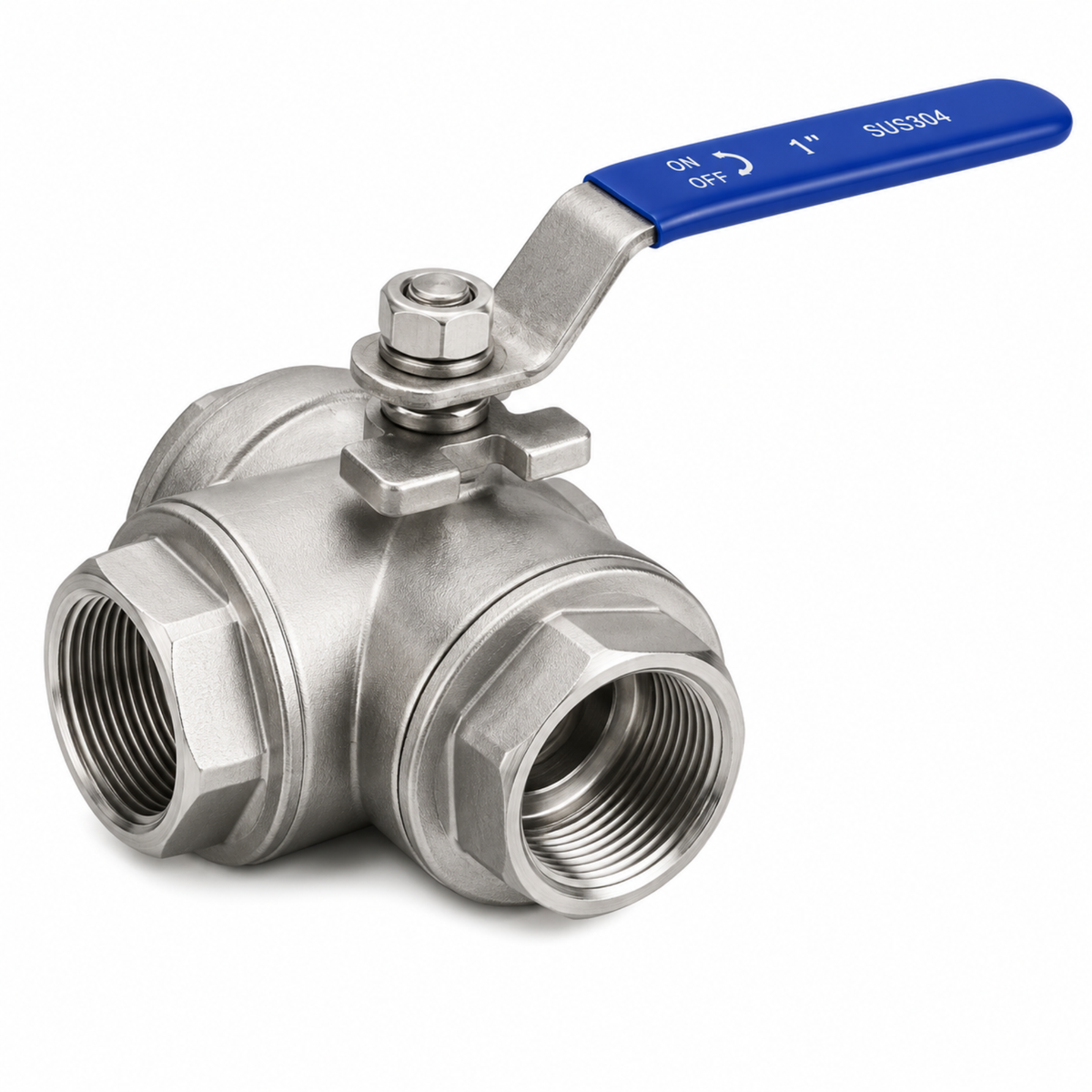

Female 3-Way L-Port Ball Valve

Description

The 3-Way L-Port Ball Valve is engineered for critical flow-path management. The internal "L" shaped ball bore allows the valve to divert flow from a common inlet to either of two separate outlet ports by rotating the handle 90 degrees. This provides a compact, reliable method to switch system paths, bypass equipment, or isolate different pipeline branches without needing multiple shut-off valves.

Technical Specifications

• Design Type: 3-Way Multi-port Ball Valve

• Port Configuration: L-Port (90° Diversion)

• Operation: Quarter-turn handle with flow path indicator

• Connection: Female x Female x Female (F/F/F) Threaded (BSP/NPT)

• Body Material: Investment Cast Stainless Steel (SS316 / CF8M)

• Sealing: PTFE/RTFE seats for chemical and thermal stability

• Pressure Rating: PN63 / 1000 WOG

• Features: ISO 5211 mounting pad for actuator integration

Key Applications

• Flow Routing: Switching flow between two different storage tanks or processing lines.

• Equipment Bypass: Diverting flow around a heat exchanger or filter for maintenance without stopping the main process.

• Industrial Manifolds: Highly efficient for space-constrained piping racks in Mesaieed and Ras Laffan.

• Automation: Perfect for applications requiring a pneumatic or electric actuator to trigger flow path changes remotely.
