Double Socket Tee with Flanged Branch

Description

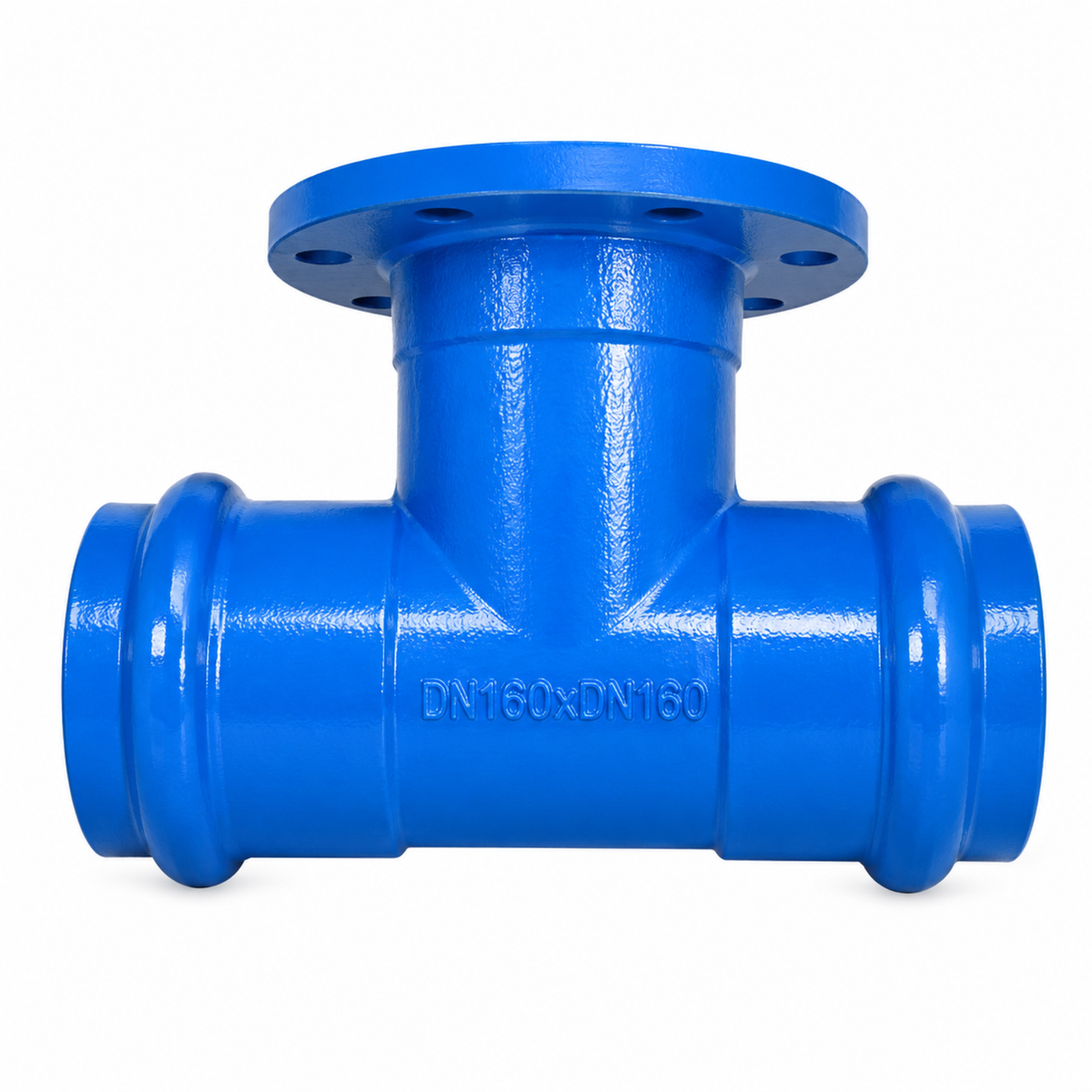

The Double Socket Tee with a Flanged Branch is a hybrid pipeline fitting designed for maximum versatility. It features two socket (push-fit) ends for quick integration into existing ductile iron, PVC, or steel pipeline runs, while the 90-degree branch is flanged. This design allows for the direct installation of flanged equipment—such as Gate Valves, Air Release Valves, or Flow Meters—without the need for extra adaptors or transition fittings.

Technical Specifications

• Design Type: Hybrid Tee (Socket x Socket x Flanged Branch)

• Pressure Rating: PN10 / PN16

• Body Material: High-strength Ductile Iron (GGG40/50)

• Branch Flange: Drilled to match BS EN 1092-2 / ISO standards

• Sealing: EPDM/NBR rubber gasket on sockets; flange gaskets required for the branch

• Coating: Fusion Bonded Epoxy (FBE) interior/exterior for long-term corrosion protection

• Standards: Compatible with standard pipe ODs used in municipal and industrial utility networks

Key Applications

• Valve Mounting: The standard fitting for installing flanged isolation or control valves onto a pipeline.

• System Instrumentation: Ideal for mounting flow meters or pressure gauges at branch points.

• Infrastructure Maintenance: A critical component for site teams in Mesaieed and Ras Laffan to add new equipment to existing lines.

• Utility Distribution: Provides a secure junction for fire hydrants or secondary branch lines.
