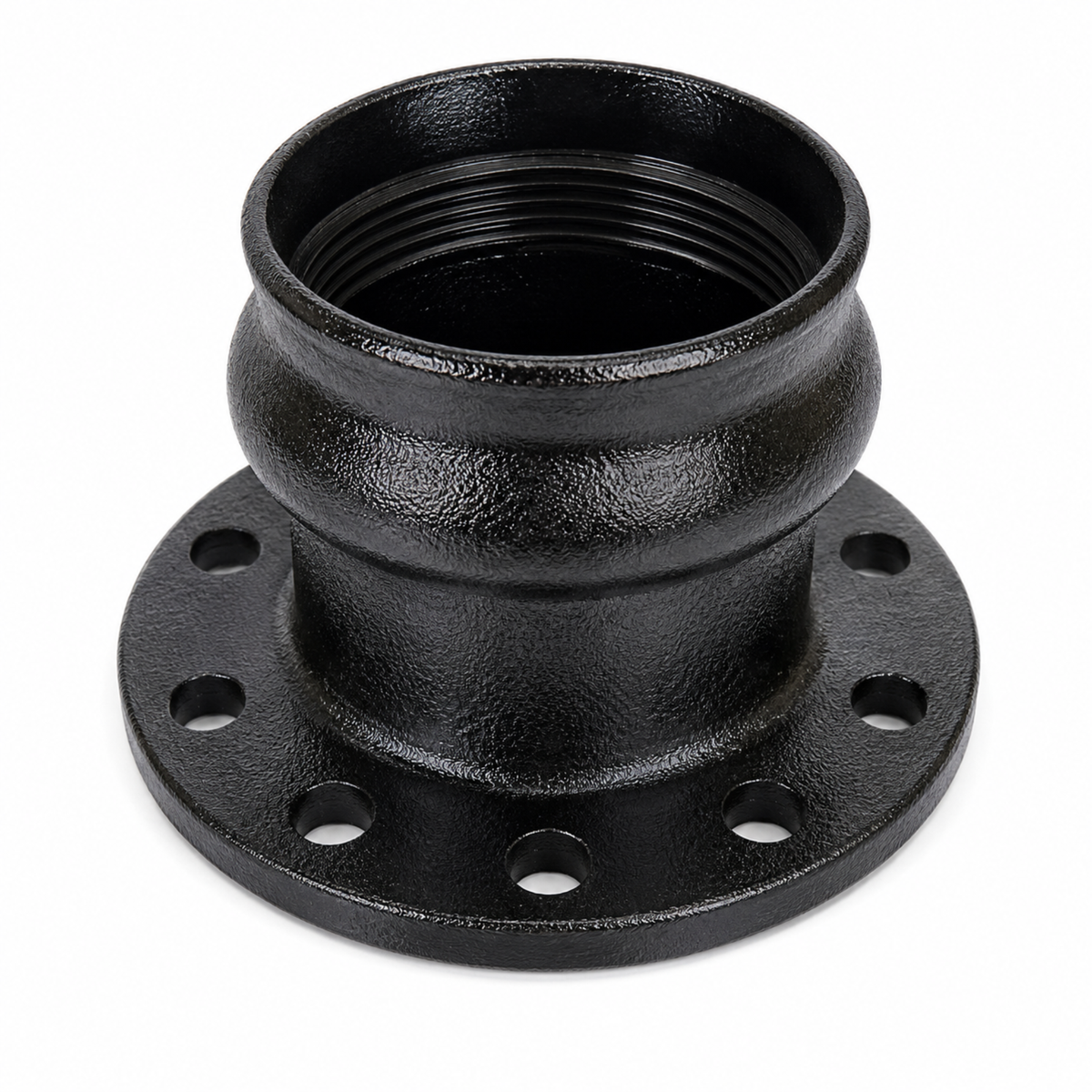

Flanged Adaptor with Multi-Drilled Flange

Description

The Flanged Adaptor with Multi-Drilled Flange is the ultimate solution for field-joining pipes with varying flange standards. Its universal multi-drilled bolt pattern allows it to connect seamlessly to multiple standards (such as BS, DIN, and ISO/ANSI) on the same site. This design eliminates the need for stocking multiple flange types, significantly reducing inventory costs and speeding up installation times in mission-critical infrastructure projects.

Technical Specifications

• Design Type: Universal Multi-Drilled Flanged Adaptor

• Drilling Compatibility: Multi-pattern (BS EN 1092-2 / DIN 2501 / ISO)

• Pressure Rating: Up to PN16 (standard)

• Body Material: High-strength Ductile Iron (GGG40/50)

• Gasket/Seal: High-grade EPDM/NBR rubber for a watertight, flexible seal

• Coating: Fusion Bonded Epoxy (FBE) for superior corrosion resistance in harsh industrial environments

• Hardware: High-tensile steel bolts/studs for secure clamping

Key Applications

• Pipeline Retrofitting: Ideal for connecting new piping to existing, non-standard infrastructure.

• Project Versatility: A "must-have" for site contractors who encounter mixed-standard piping in Mesaieed and Ras Laffan.

• Emergency Repairs: Allows rapid connection of replacement valves or pipes without needing specialized flange drills.

• General Infrastructure: Widely used in water distribution, sewage networks, and industrial cooling loops.
