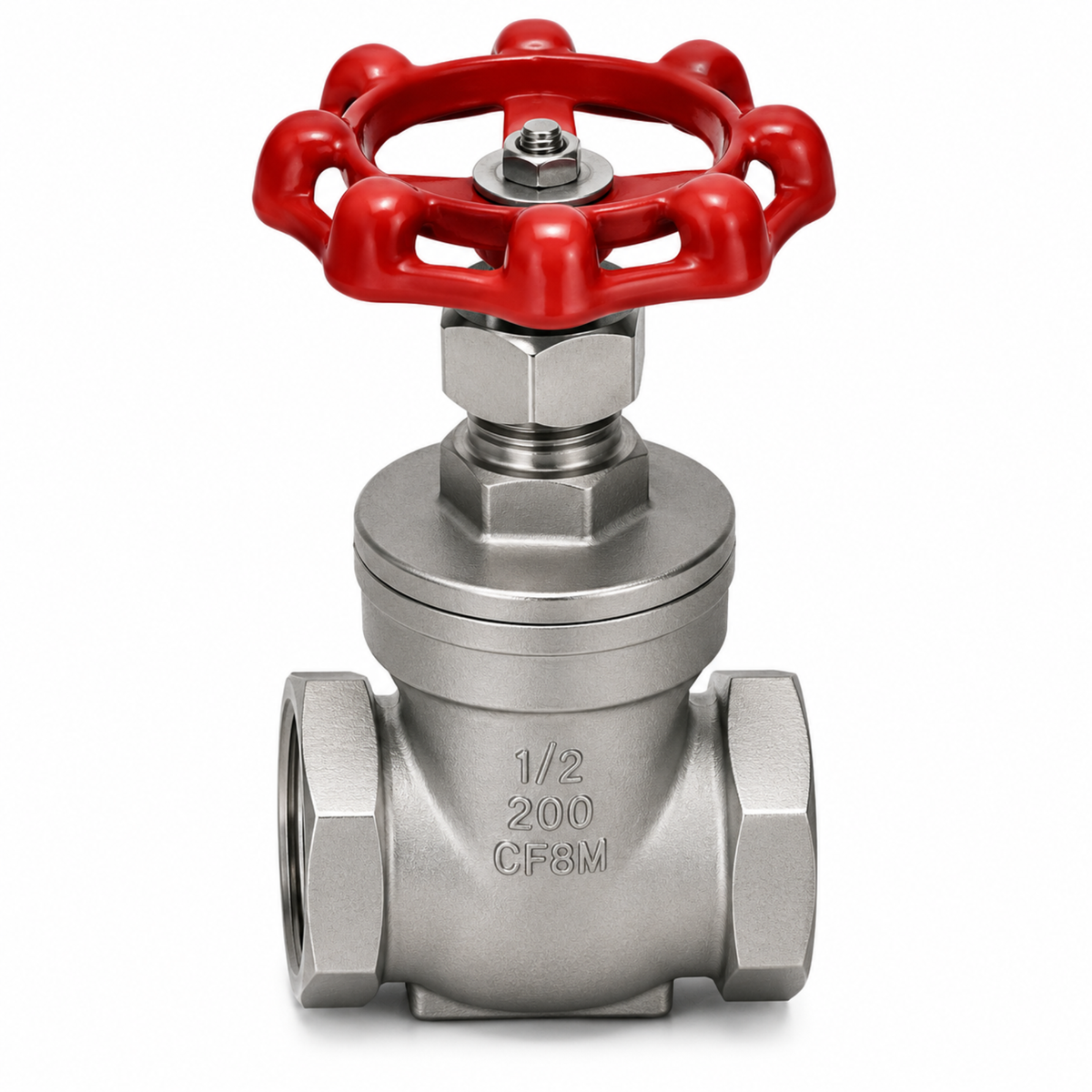

Threaded Gate Valve

Description

The Threaded Gate Valve is the preferred choice for applications where a "straight-through" flow is required with minimal pressure drop. The internal gate lifts completely out of the flow path, allowing water or fluid to pass through the valve unrestricted. This makes it ideal for main lines and pumping stations where efficiency is a priority and the valve is generally kept in either the fully open or fully closed position.

Technical Specifications

• Design Type: Non-Rising Stem (NRS) or Rising Stem (RS)

• Operation: Manual Handwheel (Multi-turn)

• Connection: Female x Female Threaded (BSP)

• Body Material: Forged Brass or Bronze

• Gate/Wedge: Solid wedge design for reliable shut-off

• Pressure Rating: PN16 / PN20

• Temperature Range: Suitable for standard water and non-corrosive media

Key Applications

• Main Water Lines: The go-to valve for isolating water mains in apartment complexes and commercial buildings.

• Pump Suction/Discharge: Provides a wide-open path for water to flow efficiently from pumps.

• HVAC Systems: Used extensively in chilled water loops where reducing pressure drop is essential for energy efficiency.

• General Utility: A long-life, robust solution for shut-off service in non-throttling applications.
