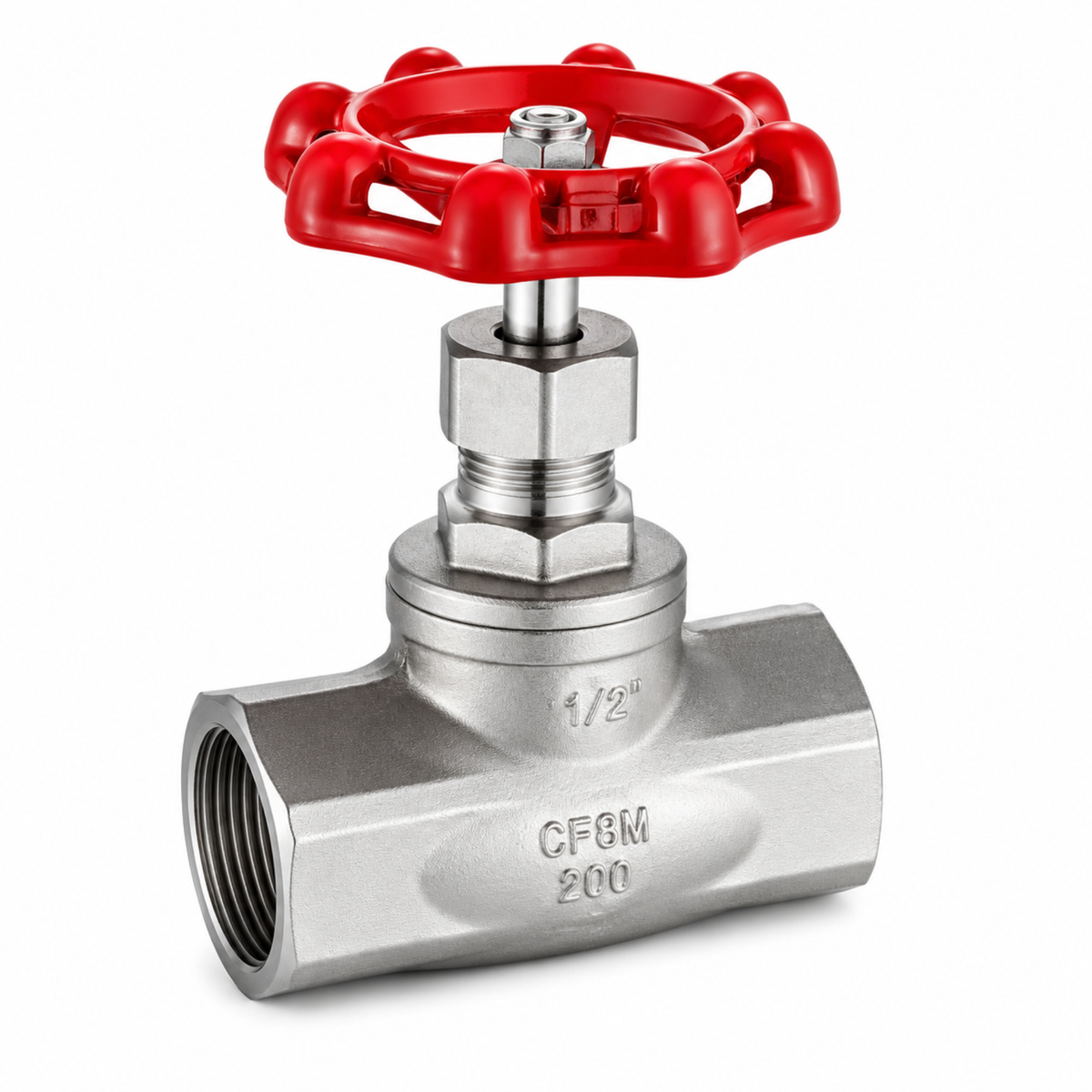

Threaded Globe Valve

Description

The Threaded Globe Valve is engineered for throttling applications where the goal is to control the rate of fluid flow. Unlike the gate valve, the globe valve’s disk moves perpendicular to the flow, allowing for gradual adjustment of the flow volume. Its design ensures a tight seal and minimizes "wire-drawing" (wear caused by fluid velocity) when the valve is partially open, making it the superior choice for systems that require frequent adjustment.

Technical Specifications

• Design Type: Globe-body design with renewable seat/disk

• Operation: Manual Handwheel (Multi-turn for precision adjustment)

• Connection: Female x Female Threaded (BSP/NPT)

• Body Material: Forged Brass, Bronze, or Stainless Steel (SS316)

• Flow Characteristic: Designed for throttling and regulation

• Pressure Rating: PN16 / PN25 / Class 150

• Temperature Range: High-temperature capable (ideal for steam and hot water)

Key Applications

• Flow Regulation: Perfect for balancing lines in chilled water or HVAC systems.

• Steam Service: Commonly used in steam piping where precise control over vapor pressure is required.

• Fuel/Oil Lines: Provides the necessary precision for chemical and fuel feeding systems in industrial plants.

• Critical Shut-off: The design provides a much tighter seal than a gate valve when closed, making it excellent for high-pressure isolation.
